Product Description

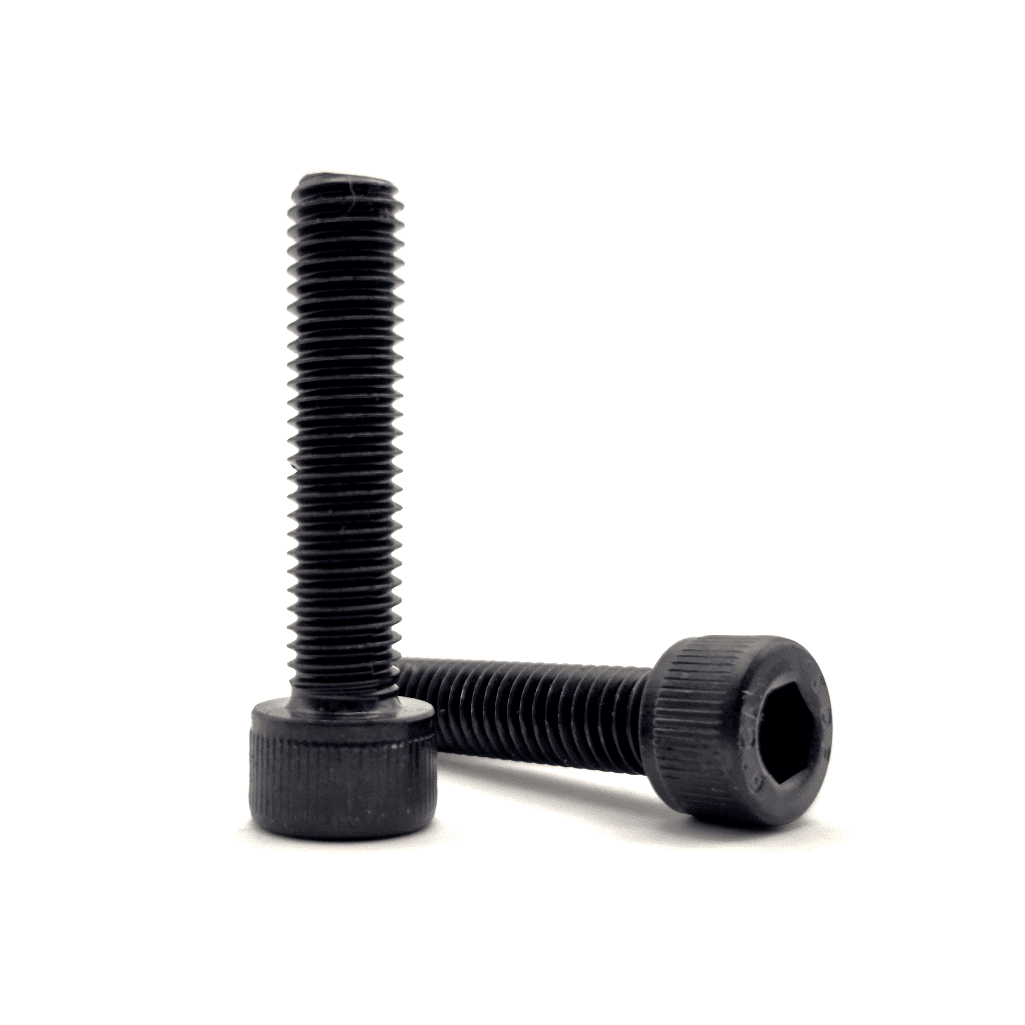

M10 x 1.25mm x 25mm Fine Pitch Socket Cap Head Screws (DIN 912) - 12.9 High Tensile Steel

Socket Cap Heads are a widely used machine screw, which feature an internal socket drive, and are fastened with a Hexagonal/Allen key. Due to this, they are very versatile and easily accessible as the internal drive allows for a smaller head diameter than seen on other machine screws. The fine pitch on these Cap Head Screws allows for higher thread engagement resulting in a higher tensile and shear strength joint. The finer thread also allows for finer adjustments to be made to the fastening in cases where accuracy is fundamental.

These Metric Fine Socket Cap Head Screws are made from 12.9 High Tensile Steel.

For larger quantities or items not listed, please email sales@gwr-fasteners.co.uk and one of our team will provide you with a quotation.

Read More

Specifications

Thread Diameter
M10
Thread Pitch
1.25mm
Length (Under Head)
25mm
Fully Threaded
Yes
Head Diameter
16mm (max)
Head Length
10mm (max)
Socket Size
8mm
Socket Depth
5mm (min)
Material
High Tensile Steel (12.9)
Finish
Self Colour Black
Manufacturing Standard
DIN 912 / ISO 4762
Product Code
HT-CAP-MF10-1.25-25

Customer Reviews

M10 x 1.25mm x 25mm Fine Pitch Socket Cap Head Screws (DIN 912 / ISO 4762) High Tensile Steel 12.9

Item in Stock (3 Available)

Product Code HT-CAP-MF10-1.25-25

Need More?

Additional stock available in:  1 - 2 Days
