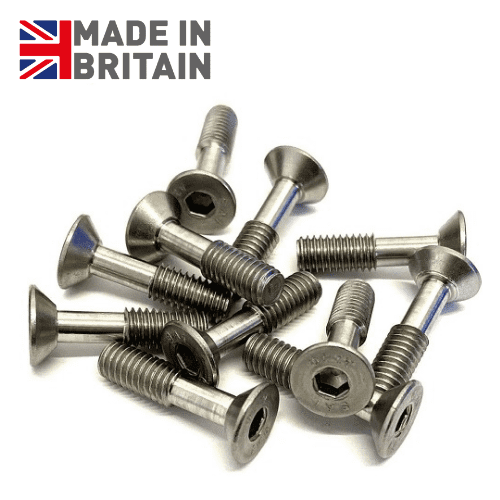

M12 x 120mm Captive Socket Countersunk Screws - A2 Stainless Steel

Socket Countersunk Screws feature an internal socket drive and are fastened with a HHHHexagonal/Allen key. The slanted neck and flat top allow for Socket Countersunk Screws to lay flush with the fastened surface or raised when paired with a Cup/Countersunk Washer.

Captive Screws feature an unthreaded reduced diameter shank which allows for disassembly of parts within a target assembly, without the screw falling out or having to be fully removed. This aids in both loss prevention, as well as being a huge safety feature in applications where fall out can lead to damage, machine breakdown or contamination. Captive screws are often used in applications where regular maintenance and access is required, most commonly with panels.

Captive screws can be permanently locked in place or can have the ability to be fully disassembled from each component depending on application. This can be done through either partially threaded entry holes, cold welding, the use of a Captive Washer, or a retaining ring.

These socket countersunk captive screws are made from A2 Stainless Steel which provides corrosion and oxidation resistance.

All Captive Screws are manufactured to order. We aim to dispatch all captive orders within 7 working days from date of order however, this timeframe may vary and will be stated at the top of the page. For custom manufactured lengths or dimensions please contact us at sales@gwr-fasteners.co.uk and one of our team will provide you with a quotation. Please note that minimum order quantity on custom dimensions is 50 units.

product review overlay image

Customer reviews

No reviews left yet
Write a review

No reviews have been left for this product, be the first to leave a review
  • Thread Pitch:
    24mm
  • Head Length:
    6.5mm
  • Captive Diameter:
    9.5mm
  • Thread Length:
    24mm
  • Length Including the Head:
    120mm
  • Thread Pitch:
    1.75mm
  • Allen Key Size:
    8mm
  • Standard:
    DIN 7991
  • Condition:
    New
  • Product Code:
    A2-CCSK-M12-120
