Product Description

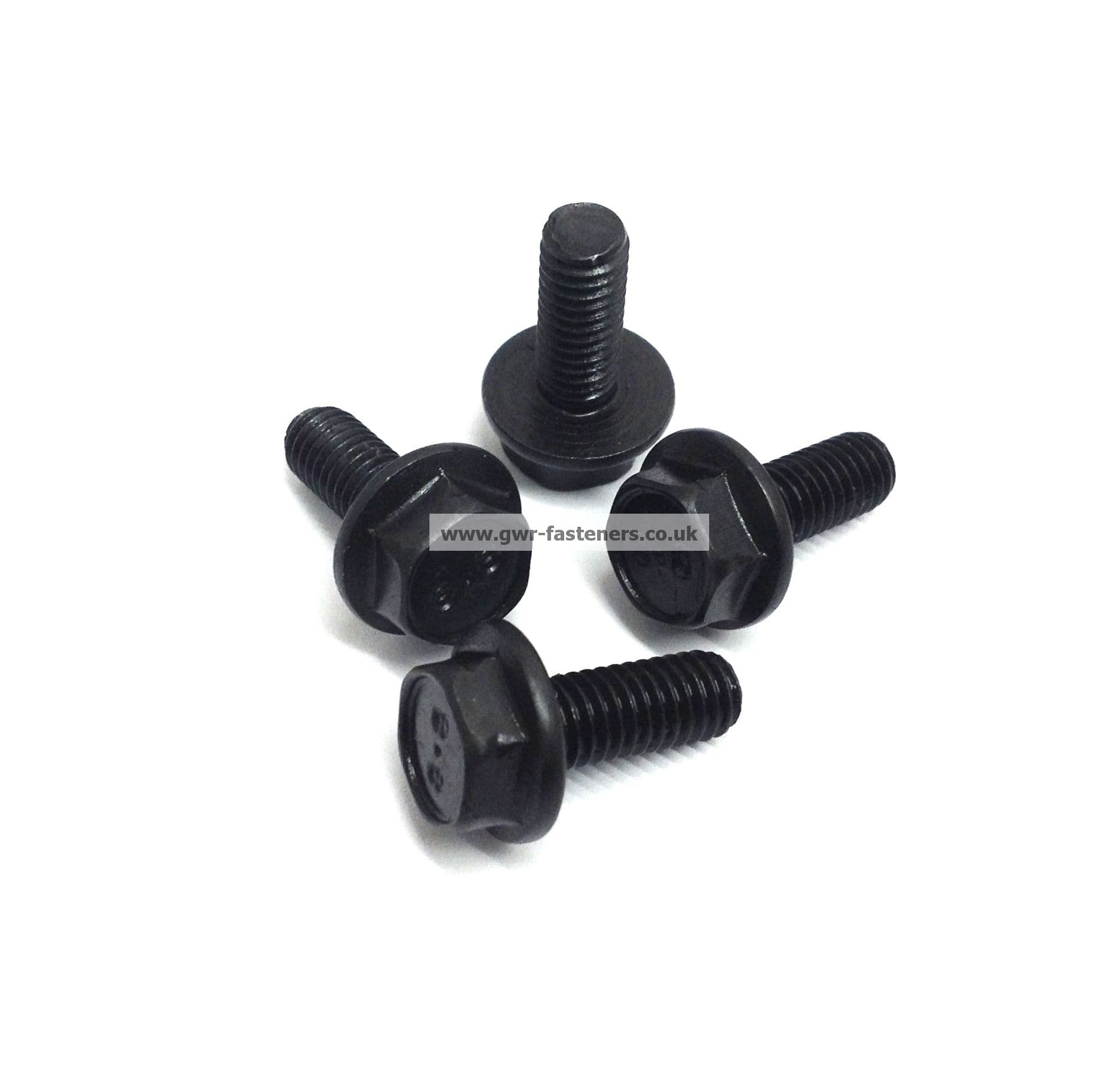

M16 x 1.5mm pitch x 50mm Fine Pitch Flanged Hexagon Bolts (DIN 6921) - 10.9 High Tensile Steel Self Colour

Hexagon Flange Bolts are very versatile screws, which are tightened and loosened with a spanner matching the head diameter (across the flats). Their Hexagonal Head allows for a great amount of torque to be applied to this screw making them ideal in heavy duty applications. The Flange Base on the head of this screw also acts in place of a washer, distributing the force of the fastening over a larger surface area, making it more secure, and putting less stress on the fastened area.

These Flanged Hexagon Bolts are made from self colour 10.9 High Tensile Steel which provides greater load bearing capabilities and shear resistance.

For larger quantities or items not listed, please email sales@gwr-fasteners.co.uk and one of our team will provide you with a quotation.

Read More

Specifications

Thread Diameter
M16
Thread Pitch
1.5mm
Length
50mm
Length (Excluding the Head)
50mm
Head Diameter (A/F)
21mm
Flange Diameter
35mm
Head Length
14.4mm
Fully Threaded
Yes
Material
High Tensile Steel (10.9)
Finish
Self Colour Black
Manufacturing Standard
DIN 6921
Socket Size
21mm
Product Code
HT-FB-MF16-1.5-50

Customer Reviews

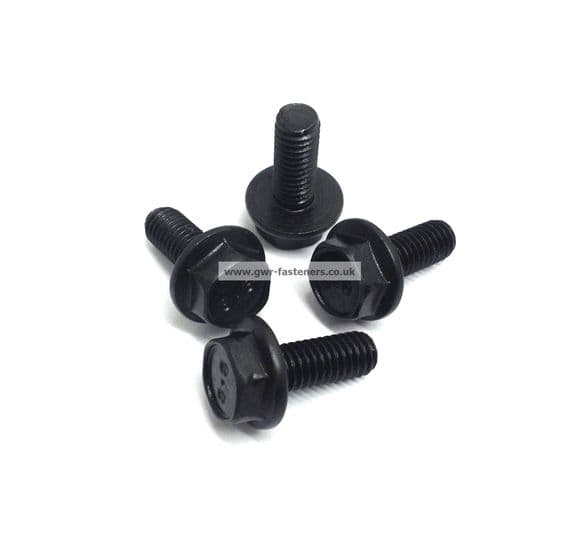

M16 x 1.5mm x 50mm Fine Pitch Flange Bolts - 10.9 Self Colour
