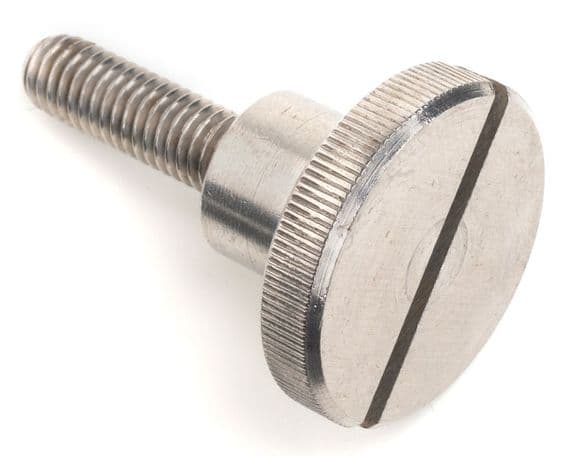

M4 x 16mm Slotted Knurled Thumb Screws (DIN 465) - A1 Stainless Steel
Knurled Thumb Screws are easily recognisable by their over-sized heads and are tightened and loosened by hand. This, along with their knurled edge, allows for a greater hold on the screw head for ease of installation. As Knurled Thumb Screws can be installed manually, they are frequently used in situations where routine maintenance is required, as they save both time and inconvenience. The addition of a slot in the head of this screw, allows for tightening or loosening with the aid of a Flat Head Screwdriver.
These Knurled Thumb Screws are made from A1 Stainless Steel which provides corrosion and oxidation resistance.
For larger quantities or items not listed, please email sales@gwr-fasteners.co.uk and one of our team will provide you with a quotation.
Customer reviews
-
Thread Diameter:M4
-
Thread Pitch:16mm
-
Thread Length:16mm
-
Knurled Head Length:3.5mm
-
Thread Pitch:0.7mm
-
Shoulder Diameter:8mm
-
Manufacturing Standard:DIN 465
-
Shoulder Length:6mm
-
Slot Dept:2.2mm
-
Slot Width:1mm
-
Material:Stainless Steel (A1)
-
Product Code:A1-SLKTS-M4-16
