Product Description

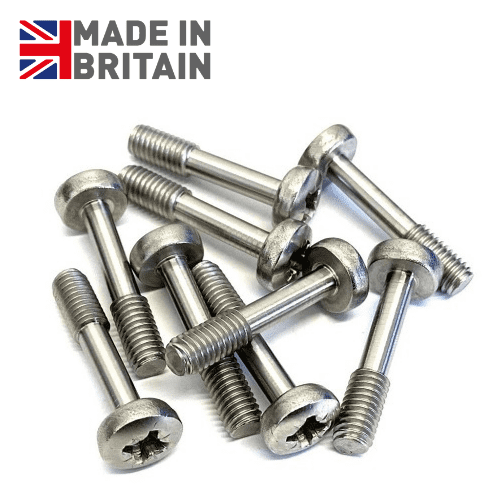

M4 x 25mm Captive Pozi Pan Head Screws - A2 Stainless Steel

Pozi Pan Head Machine Screws feature a shallow domed head and a Pozi Drive. The Pozi Drive is an improved version of the Phillips Drive offering improved torque and decreased risk of cam out, whilst the domed pan head offers an attractive finish free of sharp edges. Machine Screws are massively versatile as they are available in a wide variety of head styles and drive types.

Captive Screws feature an unthreaded reduced diameter shank which allows for disassembly of parts within a target assembly, without the screw falling out or having to be fully removed. This aids in both loss prevention, as well as being a huge safety feature in applications where fall out can lead to damage, machine breakdown or contamination. Captive screws are often used in applications where regular maintenance and access is required, most commonly with panels.

Captive screws can be permanently locked in place or can have the ability to be fully disassembled from each component depending on application. This can be done through either partially threaded entry holes, cold welding, the use of a Captive Washer, or a retaining ring.

These pozi pan head captive machine screws are made from A2 Stainless Steel which provides corrosion and oxidation resistance.

All Captive Screws are manufactured to order. We aim to dispatch all captive orders within 7 working days from date of order however, this timeframe may vary and will be stated at the top of the page. For custom manufactured lengths or dimensions please contact us at sales@gwr-fasteners.co.uk and one of our team will provide you with a quotation. Please note that minimum order quantity on custom dimensions is 50 units.

Read More

Specifications

Thread Diameter
M4
Thread Pitch
0.7mm
Length Excluding The Head
25mm
Thread Length
8mm
Head Diameter
8mm
Head Length
3.25mm
Captive Diameter
3mm
Drive Size
PZ2
Manufacturing Standard
DIN 7985Z
Material
Stainless Steel (A2)
Length
25mm
Condition
New
Product Code
A2-CPPAN-M4-25

Customer Reviews

M4 x 25mm Captive Pozi Pan Head Screws - A2 Stainless Steel

Item in Stock (492 Available)

Product Code A2-CPPAN-M4-25

Stock includes products available to modify

Dispatch Lead Time

15 Working Days
